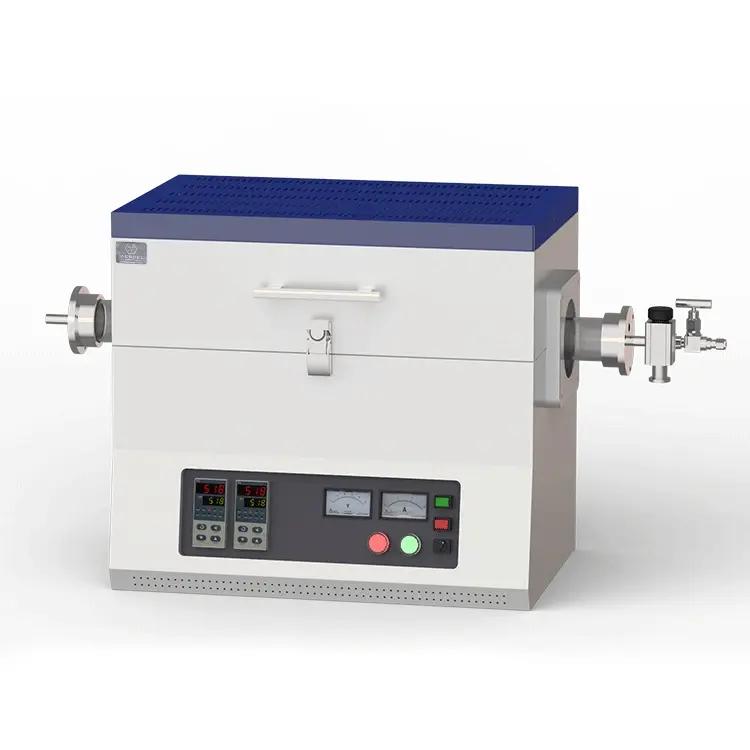

Dual-heating zone tube furnace O1200-50II-C

SKU: MND-134314
Model: O1200-50II-C

Dual-heating zone tube furnace uses high-quality electric furnace wire as heating element, the maximum heating temperature is 1200℃, and the diameter of the quartz furnace tube is 50 mm. If the customer needs, can contact the technician to customize the larger diameter furnace tube.

 Product Description

This tube furnace has two heating zones, and the heating zone length each section can also be customized by contacting a technician. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. The instrument adopts LED highlight digital tube display and push-button operation. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency. Dual-heating zone tube furnace application range: Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production. The technical specifications for the dual-heating zone tube furnace, designated as Model O1200-50II-C, are as follows. This furnace features a furnace tube constructed from high-purity quartz with a diameter of 50mm and a length of 1000mm. Within the furnace chamber, which has a length of 440mm, there are two distinct heating zones, each spanning 200mm in length. The operating temperature of this furnace ranges from 0 to 1100℃, with an exceptional temperature control accuracy of ±1℃. Temperature regulation is accomplished through a 30 or 50 segment program temperature control system. To facilitate monitoring and control, the furnace employs an LED display, which is a highlight digital tube display. The sealing method involves a 304 stainless steel vacuum flange, and the flange interface is designed with a 1/4" ferrule connector (Ø8 pagoda-shape connector). The furnace operates under a vacuum level of 4.4E-3Pa and is compatible with a power supply of AC:220V at 50/60Hz. These specifications make the dual-heating zone tube furnace a versatile and precise instrument for various experimental applications.
